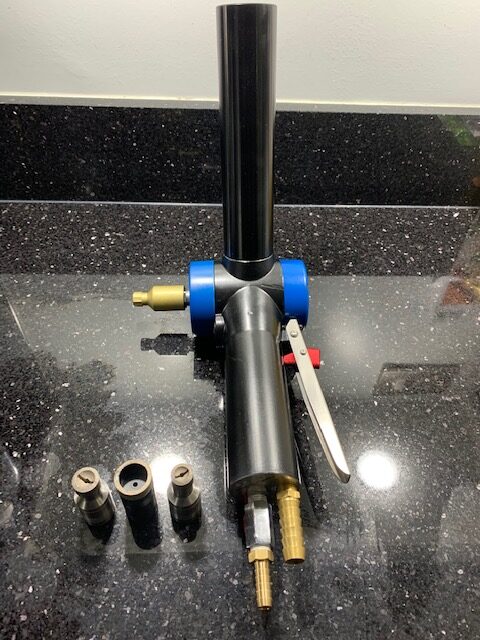

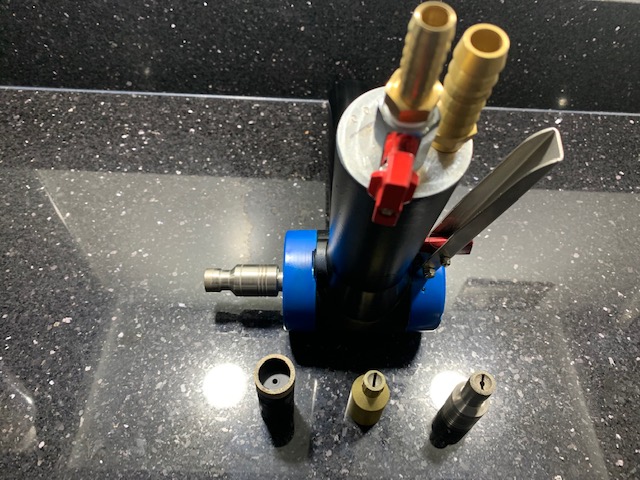

CMEC Pneumatic hand held button grinder (Hex Drive) machines have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved. Our MKII handheld pneumatic button bit grinder, is configured for hand-held use by ergonomic placement of a very efficient throttle and support handle. Simplicity in design combined with our precision engineering techniques gives you a powerful tool for redressing top hammer drill heads easily on the field. The CMEC Grinding machine can be used with CMEC 8mm standard grinding cups, Sandvik (Sanbee & Sanroc), Teroc (type55) or Super (wing drive) and grinding pins for re-grinding top hammer drill bit, grinding carbide, button bit, DTH bit, tungsten carbide.
Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant during the grinding process. A full spares back-up service is also available.
Details
| Weight | 3 kg |
|---|---|
| Air Pressure | 7-10 bar / 100-120 psi |
| Air Comsumption | 25 L/S (50CPM) |
| Spindle Speed | 21,000 rpm |
| Lubrication | In line lubricator |
| Colour | Blue, Green, Red |
| Hose Diameter | Internal 13mm |
